Alpha® Rollboard Vision

Alpha® Rollboard Vision

The Alpha Rollboard Vision is convincing in the confident and back-friendly handling of patient transfers. Uncompromising transfer and care safety is implemented here in the modern combination of hygiene requirements, quality, form and function.

All Alpha Rollboards are suitable for use in X-ray and MRI procedures.

In the development of the Alpha Rollboard Vision, the high product requirements from practical experience in hospitals, clinics and institutions were implemented in a forward-looking manner, as were the professional experience values of people from the care professions. The patented core of the Alpha Rollboard Vision offers numerous advantages; the inner surface, for example, enables quick and thorough disinfection.

Impacts are absorbed by the flexible Alpha Rollboard Vision core. At the same time, the Rollboard Vision offers safe stability and load-bearing capacity of up to 300 kg tested by independent testing institutes. Depending on the type of use and location, a variety of sizes and designs as well as different cover options are available.

New is the textile Rollboard Cover ProCover for quick and easy wipe disinfection (no washing) – an innovative combination of robustness and excellent sliding properties.



Rollboard
Cover light grey
Cover red/blue
Cover green / disposable

Video: Rollboard Vision

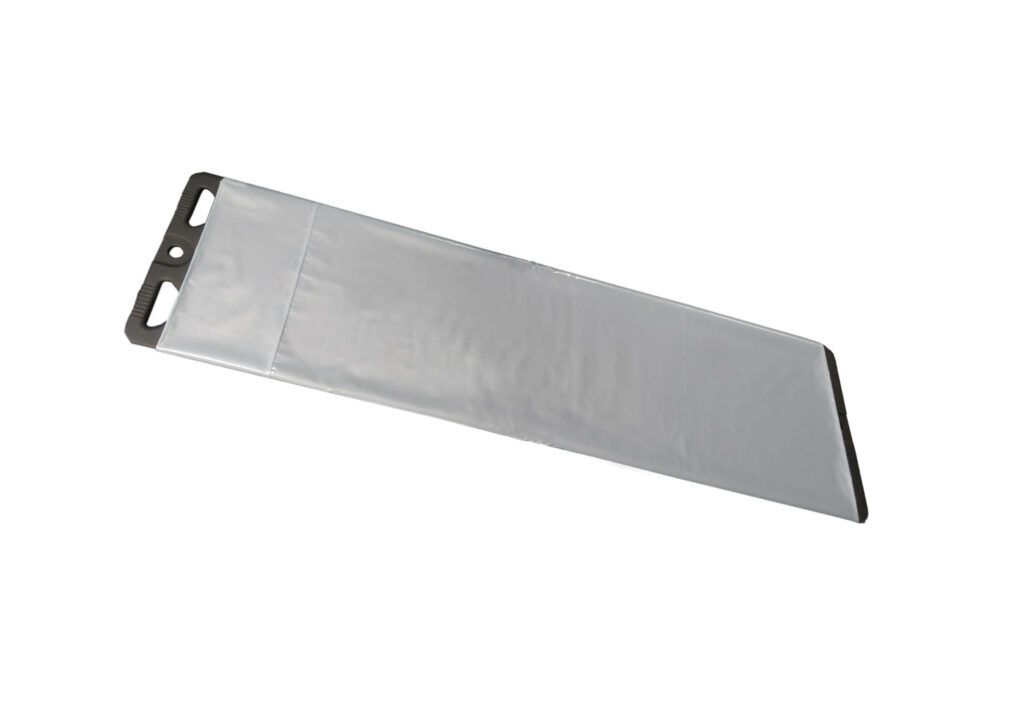

Alpha® Rollboard Vision with textile cover ProCover in colour LIGHT GREY
Article number Dimensions Version Material Material cover Matching replacement ProCover
PMF-9085-PRO 950 x 500 mm Foldable Polyethylene Polyamide PMF-9084 ProCover
PMF-9095-PRO 950 x 500 mm Non Foldable Polyethylene Polyamide PMF-9084 ProCover
PMF-9150-PRO 1500 x 600 mm Foldable Polyethylene Polyamide PMF-9154 ProCover
PMF-9155-PRO 1500 x 600 mm Not Foldable Polyethylene Polyamide PMF-9154 ProCover
PMF-9170-PRO 1800 x 500 mm Foldable Polyethylene Polamide PMF-9174 ProCover
PMF-9180-PRO 1950 x 500 mm Foldable Polyethylene Polyamide PMF-9184 ProCover

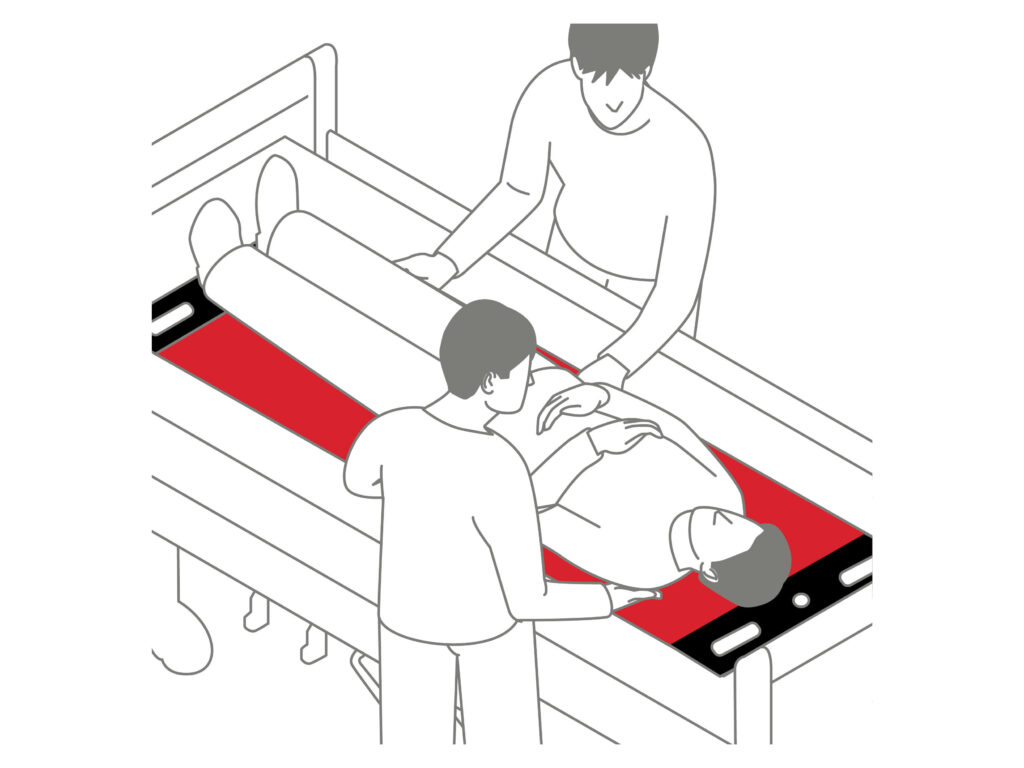

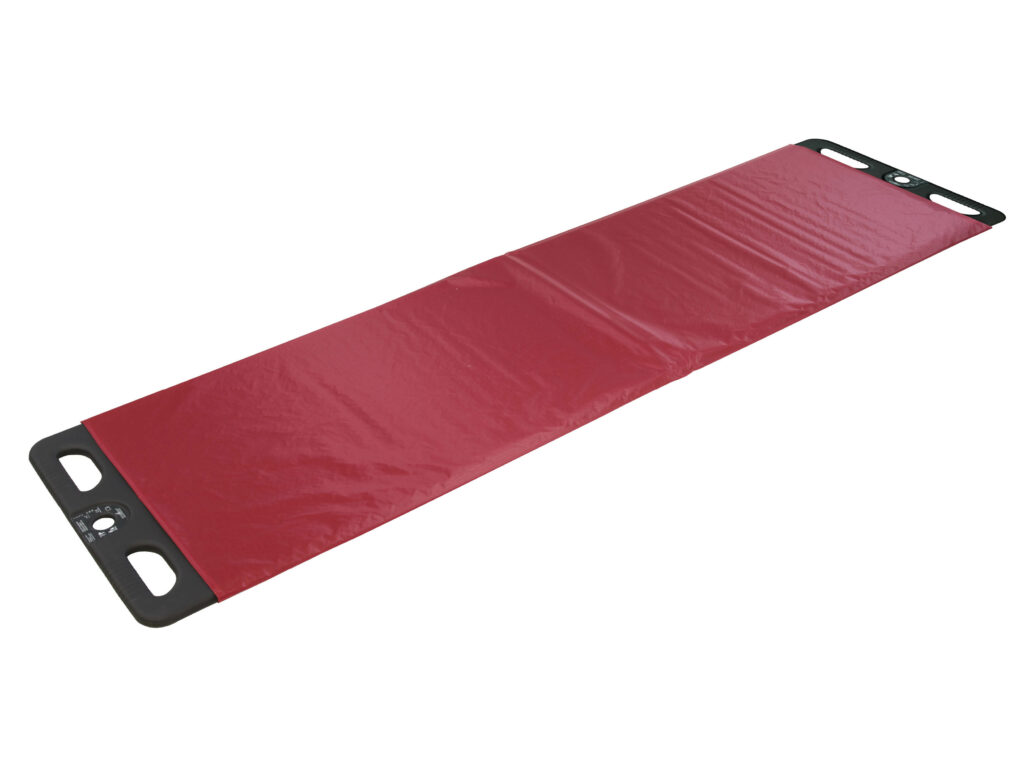

Alpha® Rollboard Vision with textile cover in colour RED
Article number Dimensions Version Material Material cover Matching replacement cover in red
PMF-9085 950 x 500 mm Foldable Polyethylene Polyamide PMF-9086/96
PMF-9095 950 X 500 mm Non foldable Polyethylene Polyamide PMF-9086/96
PMF-9150 1500 X 600 mm Foldable Polyethylene Polyamide PMF-9151
PMF-9155 1500 x 600 mm Non foldable Polyethylene Polyamide PMF-9151
PMF-9170 1800 x 500 mm Foldable Polyethylene Polyamide PMF-9171
PMF-9180 1950 x 500 mm Foldable Polyethylene Polyamide PMF-9181
Alpha® Rollboard Vision with textile cover in colour BLUE
Article number Dimensions Version Material Material cover Matching replacement cover in red
PMF-9085-1 950 x 500 mm Foldable Polyethylene Polyamide PMF-9086/96-1
PMF-9095-1 950 x 500 mm Non foldable Polyethylene Polyamide PMF-9086/96-1
PMF-9150-1 1500 x 600 mm Foldable Polyethylene Polyamide PMF-9151-1
PMF-9155-1 1500 x 600 mm Non foldable Polyethylene Polyamide PMF-9151-1
PMF-9170-1 1800 x 500 mm Foldable Polyethylene Polyamide PMF-9171-1
PMF-9180-1 1950 x 500 mm Foldable Polyethylene Polyamide PMF-9181-1
OnlyU® Disposable Protection Foil for Rollboard Vision
Article number Dimensions Version Suitable for Material
PMF-0191 900 x 545 mm 110 pcs on roll perforated PMF-9085, PMF-9095 Polyethylene
PMF-0192 1800 x 545 mm 55 pcs on roll perforated PMF-9170 Polyethylene

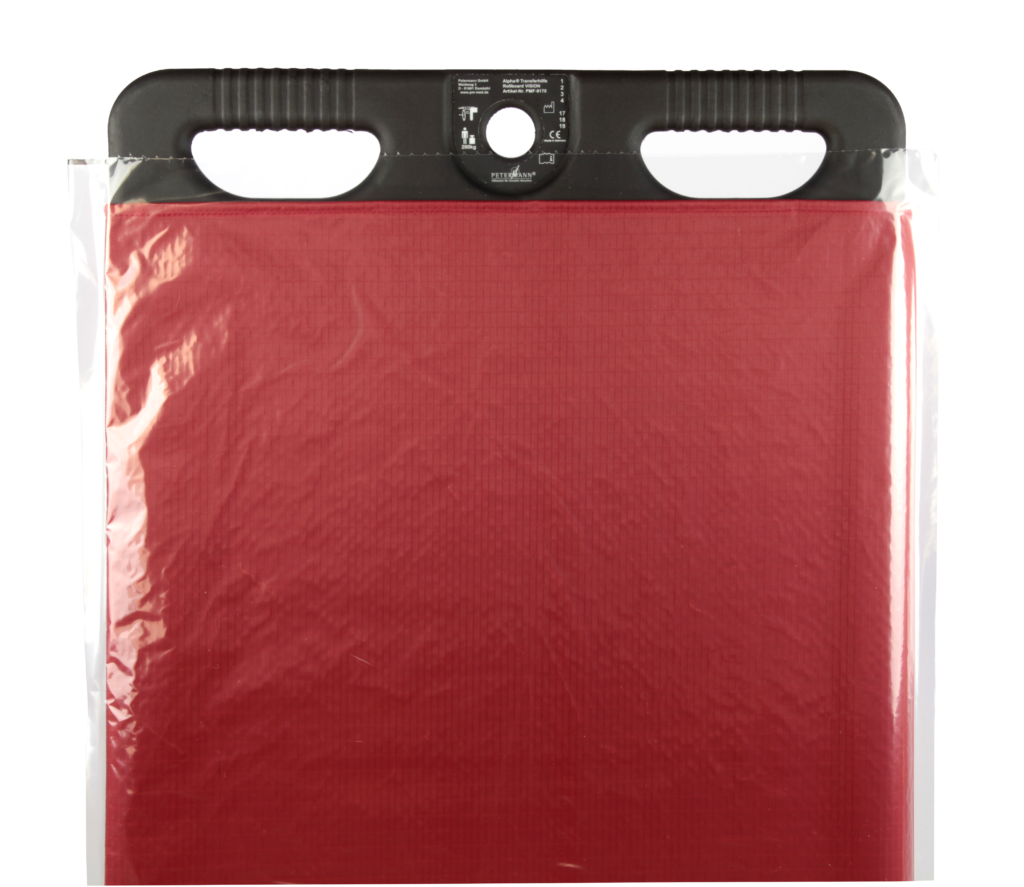

OnlyU® PEM Disposable Cover for Rollboard Vision
Article number Dimensions Version Suitable for Material
PMF-9077 850 x 475 mm 50 pcs folded in dispenser PMF-9075 and 9050 Polyethylene
PMF-9090 900 x 530 mm 120 pcs on roll perforated PMF-9085/9095 Polyethylene
PMF-9152 1500 x 610 mm 70 pcs on roll perforated PMF-9150 and PMF-9155 Polyethylene
PMF-9172 1800 x 530 mm 60 pcs on roll perforated PMF-9170 Polyethylene

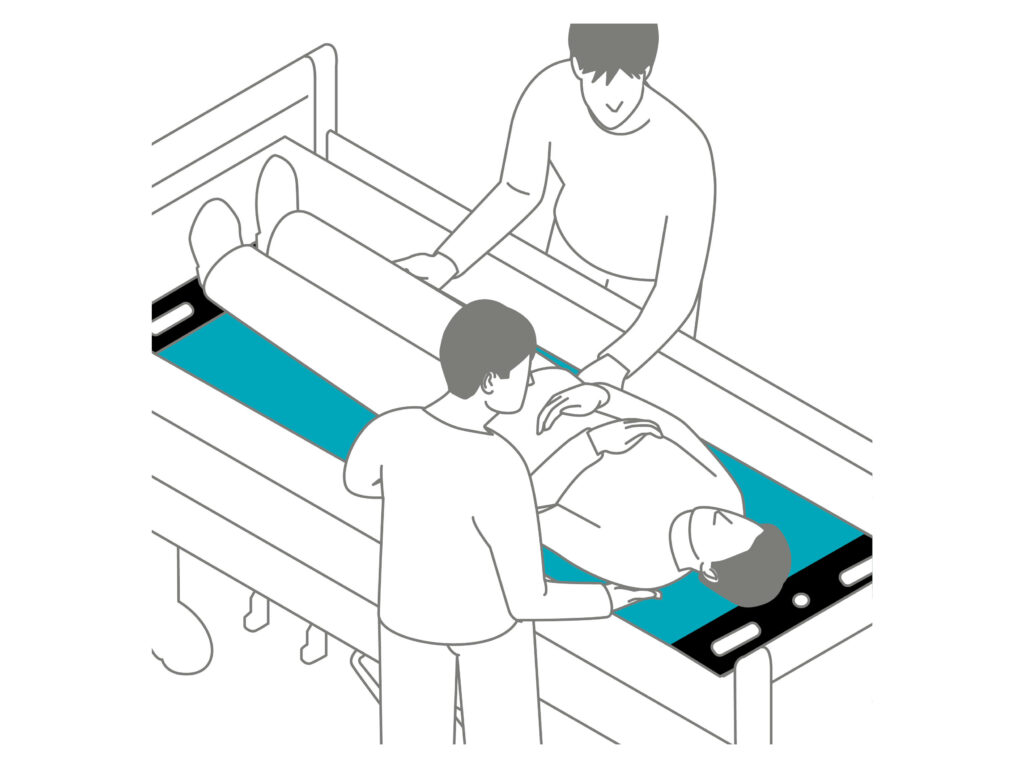

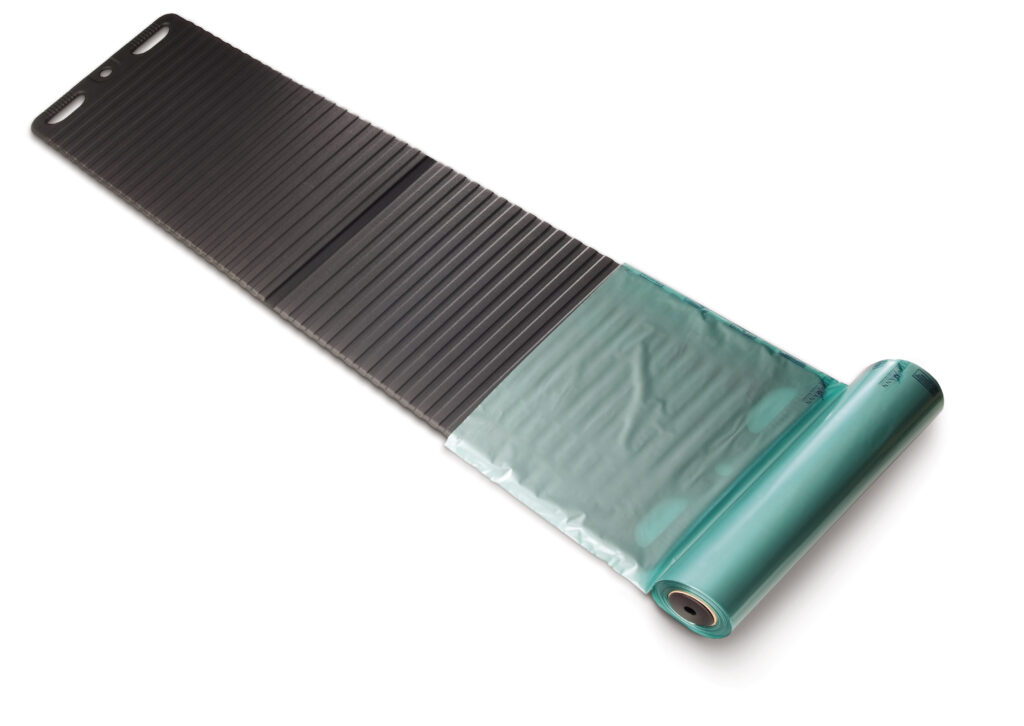

Sets Rollboard Corpus with PEM Disposable Cover on roll
Article No. SET incl. corpus from Dimensions Version incl. PEM disp. cover Version Dimensions
PMF-9089 PMF-9085 950 x 500 mm Foldable PMF-9090 120 pcs on roll, perforated 900 x 530 mm
PMF-9099 PMF-9095 950 x 500 mm Non foldable PMF-9090 120 pcs on roll, perforated 900 x 530 mm
PMF-9153 PMF-9150 1500 x 600 mm Foldable PMF-9152 70 pcs on roll, perforated 1500 x 610 mm
PMF-9157 PMF-9155 1500 x 600 mm Non foldable PMF-9152 70 pcs on roll, perforated 1500 x 610 mm
PMF-9175 PMF-9170 1800 x 500 mm Foldable PMF-9172 60 pcs on roll, perforated 1800 x 530 mm
PMF-9189 PMF-9180 1950 x 500 mm Foldable PMF-9172 60 pcs on roll, perforated 1800 x 530 mm

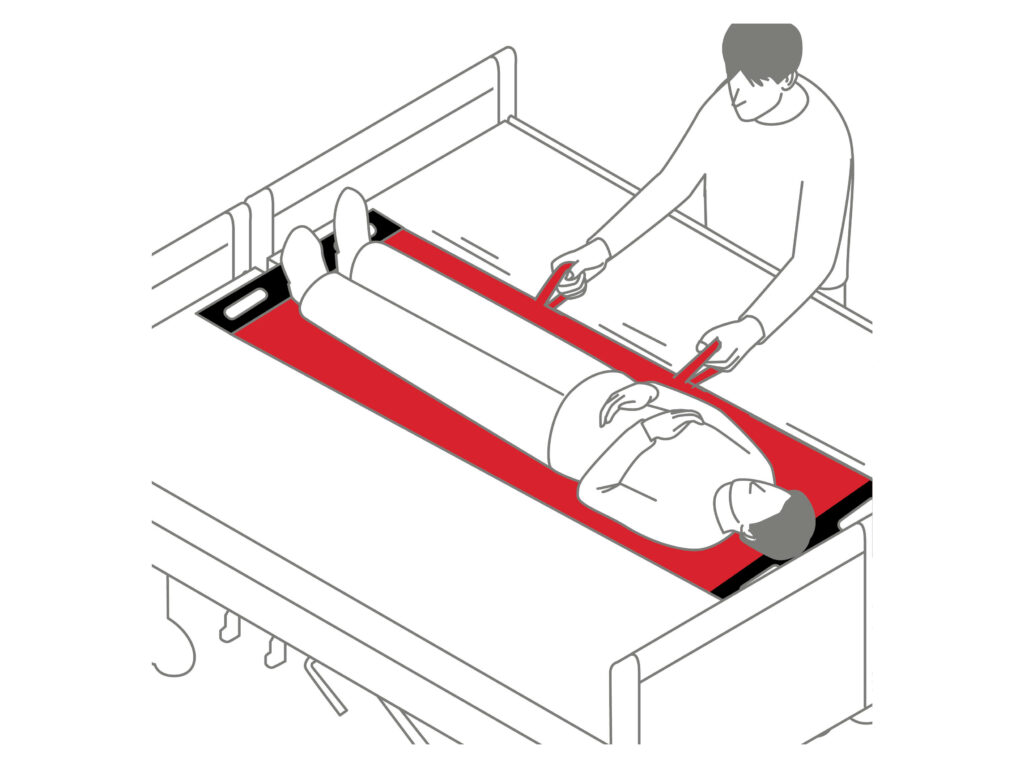

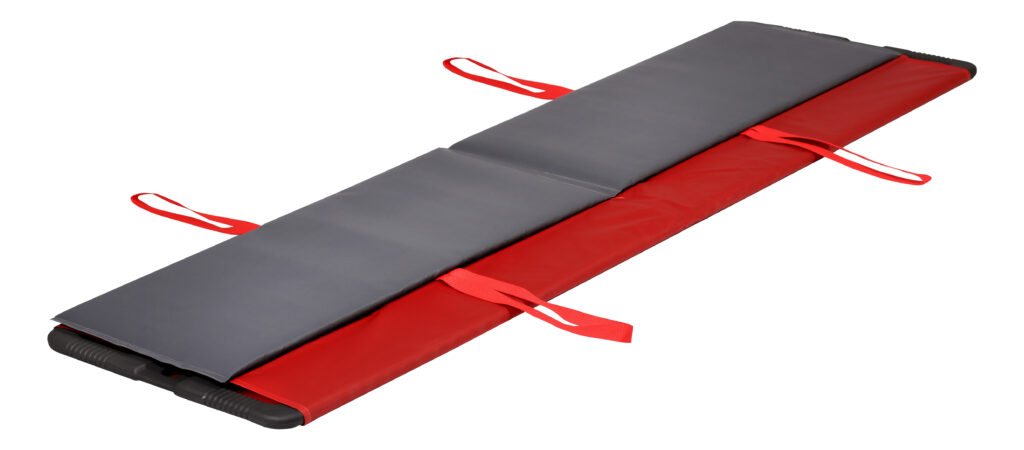

Alpha® Rollboard Vision with cover with handles and grips
Article number Dimensions Version Material Material cover Matching replacement cover
PMF-9185 1800 x 500 mm Foldable, w handles & grips Polyethylene Polyamide PMF-9186
Alpha® Rollboard Vision Neo with textile cover in colour RED
Article number Dimensions Version Material Material cover Suitable replacement cover in color red
PMF-9050 Neo Genius 850 x 450 mm 2 Foldable Polyethylene Polyamide PMF-9051
PMF-9075 (Ambulanz Neo) 850 x 450 mm Foldable Polyethylene Polyamide PMF-9076

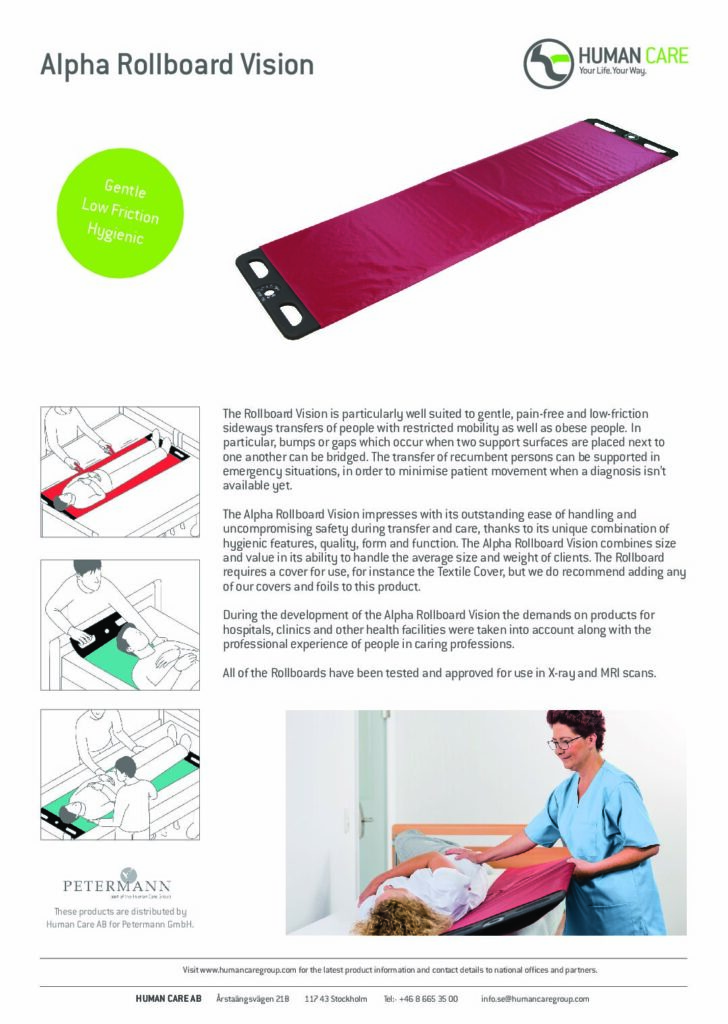

Product Sheet
Product Sheet
  • Format: pdf,
  • Size: 834 KB

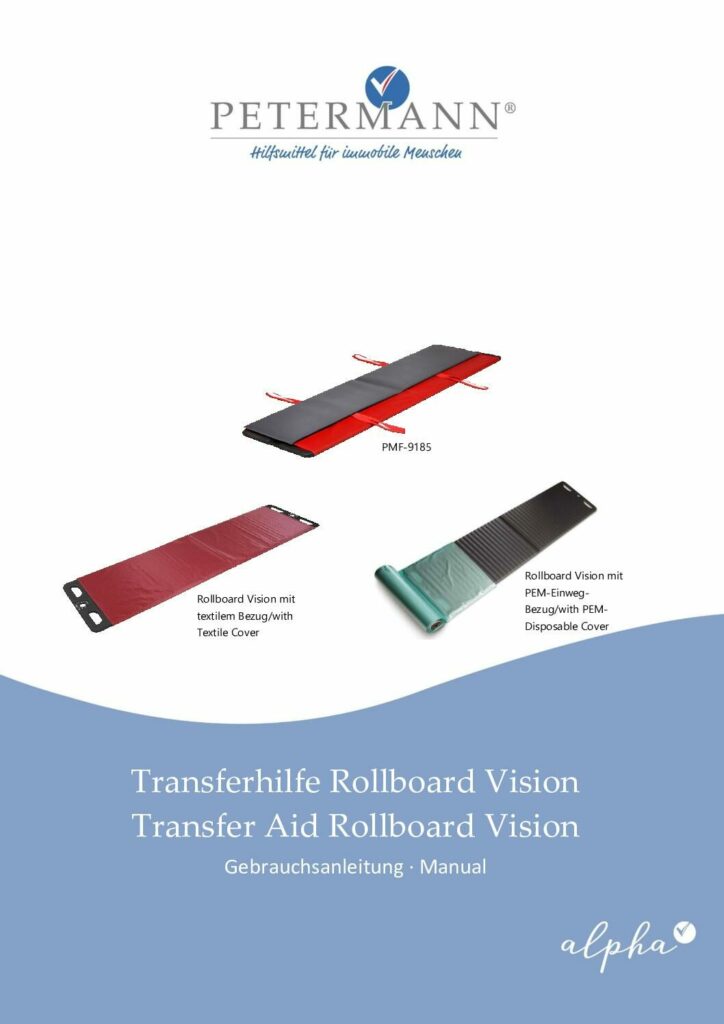

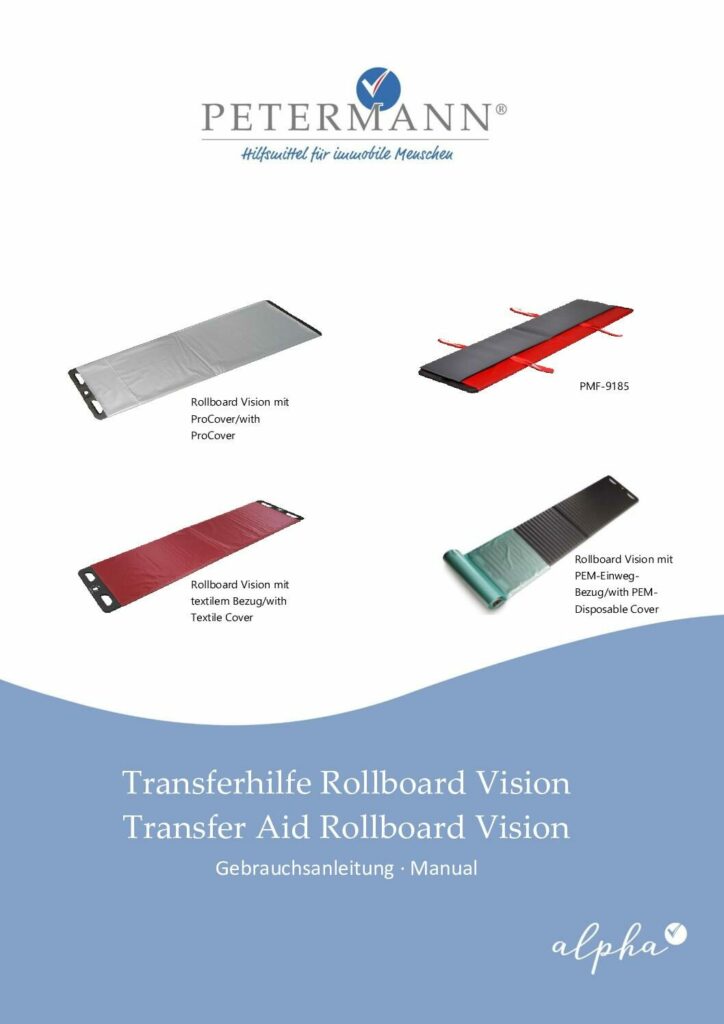

User Manual
